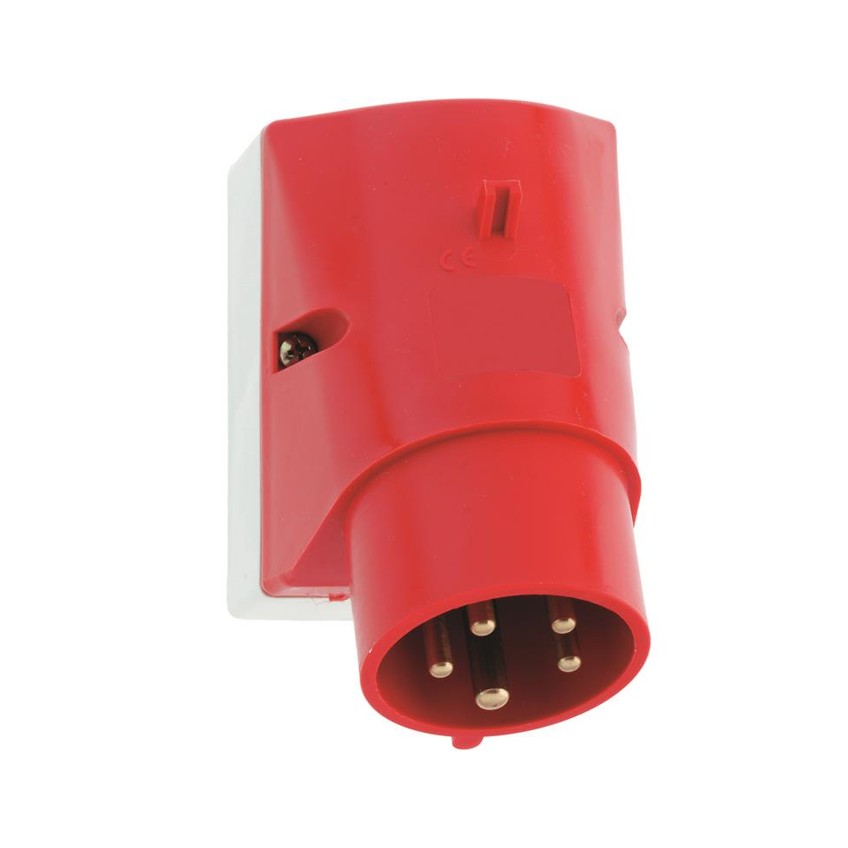

    Bals 2415 - Bals mannelijk opbouwcontact standaard - 6h 16A 5P 400V IP44, behuizing 100x75, schroefklem

    Merk: Bals
    Artikelnr.: 2415/1
    GTIN: 4024941024150
    Beschikbaarheid:: in stock
    Oude prijs: 22,13
    13,50
    i h
    Verzenden naar
    *
    Verzendmethode
    Naam
    Geschatte levering
    Prijs
    Geen verzendopties

    Verzending in België is steeds gratis bij een aankoop vanaf 100€ inclusief btw! Lees alles over verzenden.

    Verwachte levertermijn: 1 - 3 werkdagen
    Product id2415
    EAN4024941024150
    Product groepWandcontact toestel inlaat
    Amperage16A
    Aantal polen5p
    Regeling van de fasen3P+N+PE
    Positie van beschermend contact6 h
    Spanning200/346 tot 240/415V
    Frequentie50 en 60Hz
    BeschermingsklasseIP44
    Kleur coderood
    Kleur van het apparaatbehuizing bovenkant rood
    behuizing onderkant grijs
    Verbinding ontwerpschroef terminal
    Maximale doorsnede vd geleider2,5 mm2
    Kabel ingangboven ingang M20
    Hoogte135mm
    Breedte75mm
    Diepte110mm
    Dimension of enclosure100x75 mm (HxW)
    Materiaal van de behuizingPolyamide
    ContactenHet contact draagdoek is gemaakt van polyamide
    De contacten zijn van messing
     The cable entry is one at top open and one at bottom and one rear side closed
    Gewicht/stuks0.249 kg / piece
    Verpakkingzak
    De hoeveelheid inhoud1 ST
    EAN4024941024150
    Lengte410 mm
    Breedte285 mm
    Gewicht0.249 kg
    Verpakkingdoos
    De hoeveelheid inhoud10 ST
    EAN4024941827904
    Lengte387 mm
    Breedte222 mm
    Hoogte150 mm
    Gewicht2.683 kg
    Volume11,029.5 ccm
    VersieETIM classificatie-7
    KlasseEC001319 - CEE plug for mounting on machines and equipment
    IEC-stroomsterkte16
    Aantal polen5
    RAL-nummer3000
    Identificatie kleurRood
    Spanning acc. EN 60309-2400 V (50+60 Hz) rood
    Klok uur positie6
    Beschermingsklasse (IP)IP44
    AansluitingGeschroefd terminal
    Fase omvormerNee
    Militaire modelNee
    Hoek van plugSchuin
    MateriaalKunststof
    Construction typeAndere
    • Verdere technische beschrijvingen artikel op aanvraag.
    Product specificaties
    Top
    MerkBals
    TypeStandaard opbouwcontact
    *
    *
    *
